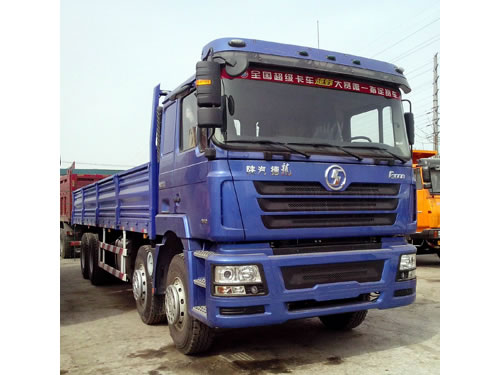

F3000 8×4 Cargo Truck

F3000 8×4 Cargo Truck

Description
F3000 8×4 cargo truck is one of our hot selling products. It is quite famous for its excellent power, lower oil consumption, stable performance, multiple personalized configurations and beautiful, elegant, safe and comfortable driving cab. Shacman heavy duty truck is well suitable for highway long distance transportation or medium distance transport. This lorry truck has four different models for your option, but their drive types are all the same. F3000 8×4 cargo truck is made up of cab, engine, transmission, front axle, rear axle, tire and other spare parts. It can be divided into standard version for ordinary goods and strengthening version for heavy goods. Shacman heavy duty truck can meet customers’ specific transportation requirements.

Advantages
The design of F3000 8×4 cargo truck has all the necessary safety features such as anti-slip foot step and 90 degree opening door. Large outside mirror provides a perfect side view, while their housings are rounded for reducing wind noise. Heating function is available as an option.

Technical Parameters of F3000 8×4 Cargo Truck

Model SX1315NT456 SX5245CLXYNR456
Max. Speed (km/h) 92 99
Drive System 8 × 4 8 × 4
Dimensions (L × W × H) (mm) Overall 11865 × 2490 × 3210 12000 × 2495 × 3950
Tipper Body 9000 × 2326 × 600,800 9400 / 9600 × 2326 × 2345
Curb Weight (kg) 13400 14600
Total Mass (kg) 31000 31000
Wheel Base  (mm) 1800 plus 4500 plus 1350 1800 plus 4500 plus 1350
Wheel Track (mm)  (F/R)   1939 / 1860 2036 / 1800
Overhang (mm)  (F/R) 1525 / 2690 1525 / 2085
Approach / Departure Angle (°) 18 / 12 28 / 20
Engine WP10.340E32 / WP10.380E32 / WP10.375
Horsepower 340 / 375 / 380 HP
Gearbox RTD-11509C / 10JSD140 / 12JSD160T (FAST GEAR)
Clutch Ф 430 diaphragm type
Steering  Engine ZF technology
Cab MAN F3000 flat / high roof cabin with A/C and sleeper
Axle Front 5.5 / 7.5 tons
Rear 2 * 13 / 16 Ton MAN axle, final ratio: 4.8
Tire 11.00R20 / 12.00R20  (12+1)
Fuel Tank (L) 400

Shaanxi Automobile Group is engaged in providing F3000 8×4 cargo trucks in China. We have 40-year production experience of Shacman heavy duty trucks. Our products also cover off-road vehicles, medium-duty trucks, large and medium-sized coaches, medium and light-duty trucks, minivan, new energy vehicles, heavy-duty axles, light axles, Cummins engines, automobile parts, etc. Our lorry trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
