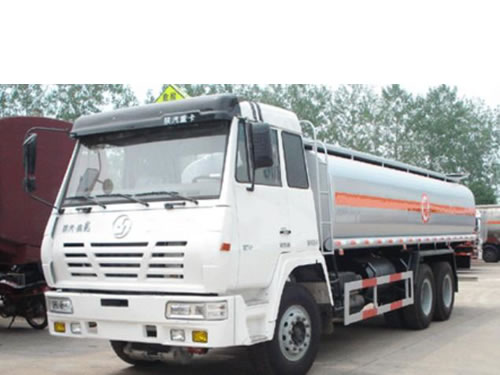

STEYR 6×4 Oil Tank Truck

Introduction
Steyr 6×4 oil tank truck is a special purpose vehicle used for the storage and transport of various oil derivatives, such as gasoline, diesel, crude oil, lubricating oil and coal tar oil. Depending on different purposes and using environments, the refueling tank truck can achieve a variety of functions, such as refueling, oil transport, oil absorbing, oil pumping, oil splitting, charging and storing, etc. The oil tank of steyr 6×4 oil tank truck adopts CNC automatic longitudinal welding process. The arc-shaped tank is processed by CNC rotary forming machine ensuring high strength and beautiful appearance. We can also provide optional refueling tank truck configurations to meet various requirements of customers.

Technical Parameters of Steyr 6×4 Oil Tank Truck

Max. Speed (km/h)			92
Drive System			6 × 4
Dimensions (L × W × H) (mm)		Overall	9620 × 2500 × 3400
		Tanker Capacity	20 CBM to 30 CBM
Tanker Form			single warehouse, or at buyer’s option
Tank Port Number			one or two
Others			end socket: 5 mm; barrel: 5 mm-Q235; with pump
Curb Weight (kg)			11500
Total Mass (kg)			25000
Wheel Base (mm)			4325 plus 1350
Wheel Track (mm) (F/R)			1939 / 1800
Overhang (mm) (F/R)			1576 / 2369
Approach / Departure Angle (°)			18 / 17
Engine			WD615.50 / WD615.34 ( WEICHAI, Euro II)
Horsepower			290 / 340 HP
Gearbox			9JS135 / RTD-11509C / 12JSD160T (FAST GEAR)
Clutch			Ф 430 Diaphragm type
Steering Engine			ZF technology
Cab			STEYR mid-lengthened half high roof cabin with A/C and sleeper
Axle	Front		6.5 tons
	Rear		2 * 13 ton STR hub reduction axle, final ratio: 4.8
Tire			11.00R20 / 12.00R20
Fuel Tank (L)			380

Shaanxi Automobile Group is a leading exporter of steyr 6×4 oil tank trucks in China. We have been engaged in manufacturing refueling tank trucks for over 40 years. In addition to the Shacman Steyr fuel tanker truck, our products also cover off-road vehicles, medium-duty trucks, large and medium-sized coaches, medium and light-duty trucks, minivan, new energy vehicles, heavy-duty axles, light axles, Cummins engines, automobile parts, etc. Shacman refueling tank trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
