F2000 6×4 Oil Tank Truck

F2000 6×4 Oil Tank Truck

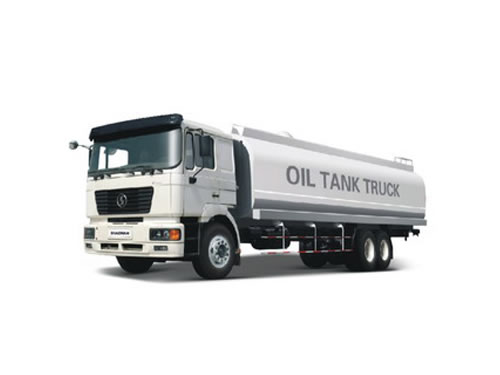

Shacman F2000 6×4 oil tank truck is a special vehicle used for the storage and transport of various oil derivatives, such as gasoline, diesel, crude oil, lubricating oil and coal tar oil. Depending on different purposes and using environments, F2000 6×4 tank truck can achieve a variety of functions, such as refueling, oil transport, oil absorbing, oil pumping, charging and storing, etc. This F2000 fuel tank truckis made up of oil tank, power takeoff, drive shaft, gear pump, oil pipeline network system, flow meter and other components. The oil tank truck is quite suitable for medium and long distance road transport.

F2000 6×4 tank truck is extensively used for a variety of oil and chemical liquid transport in petrochemical sector, such as gasoline, diesel and industrial chemicals.

Technical Parameters of F2000 6×4 Oil Tank Truck

Max. Speed (km/h) 92
Drive System 6 × 4
(L × W × H) (mm)
Overall 9719 × 2500 × 3400
Tanker Capacity 20 CBM to 30 CBM
Tanker Form single warehouse, or at buyer’s option
Others end socket: 6 mm; barrel: 6 mm-Q235, with pump
Tank Port Number one or two
Curb Weight (kg) 11500
Total Mass (kg) 25000
Wheel Base  (mm) 4325 plus 1350
Wheel Track (mm)  (F/R)   1939 / 1800
Overhang (mm)  (F/R) 1525 / 2519
Approach / Departure Angle (°) 16 / 17
Engine WD615.50 / WD615.34 (WEICHAI, Euro II)
Horsepower 290 / 340 HP
Gearbox 9JS135 / RTD-11509C / 12JSD160T (FAST GEAR)
Clutch Ф 430 diaphragm type
Steering  Engine ZF technology
Cab MAN F2000 lengthened flat roof cabin with A/C and sleeper
Axle Front 7.5 tons
Rear 2 * 13 ton STR hub reduction axle, final ratio: 5.73
Tire 11.00R20 / 12.00R20 / 12R22.5 / 315 / 80R22.5 (10+1)
Fuel Tank (L) 380

Shaanxi Automobile Group is a leading exporter of F2000 6×4 tank trucks in China. We have been engaged in producing oil tank trucks for over 40 years. In addition to this F2000 fuel tank truck, our products also cover off-road vehicles, medium-duty trucks, large and medium-sized coaches, medium and light-duty trucks, minivan, new energy vehicles, heavy-duty axles, light axles, Cummins engines, automobile parts, etc. Shacman F2000 6×4 oil tank trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
