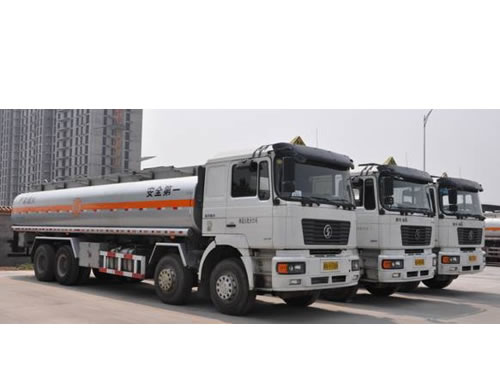

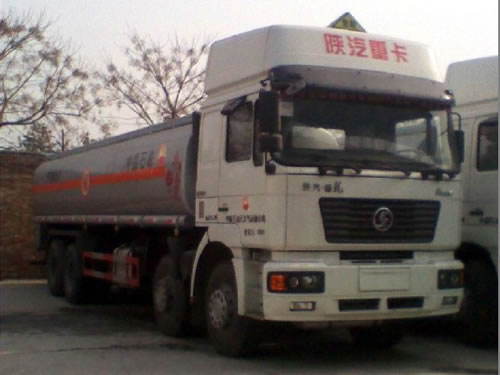

F2000 8×4 Oil Tank Truck

F2000 8×4 Oil Tank Truck

Introduction
F2000 8×4 oil tank truck is a type of special engineering machinery that is often used to store and transport dangerous goods. It is well suited for medium and long distance highway transportation. This F2000 fuel tank truck enjoys the advantages of safe operation, comfortable driving and low fuel consumption. The truck tank can be made of optional stainless steel, aluminum and other materials. F2000 8×4 oil tank truck is mainly used for the transportation and storage of oil derivatives, such as gasoline, diesel, crude oil, lubricating oil and coal tar oil.

Technical Specifications

Model SX5314GYYJM456 / SX5314GYYJR456 31 tons payload
Max. Speed (km/h) 77
Drive System 8 × 4
Dimensions
(L × W × H) (mm)
Overall 12000 × 2490 × 3780
Tanker Capacity 30 CBM to 40 CBM
Tanker Form single warehouse, or at buyer’s option
Others end socket: 6mm; barrel: 6mm-Q235, with pump
Tank Port Number one or two
Curb Weight (kg) 14000
Total Mass (kg) 31000
Wheel Base  (mm) 1800 plus 4500 plus 1350
Wheel Track (mm)  (F/R)   2036 / 1850
Overhang (mm)  (F/R) 1525 / 2825
Approach / Departure Angle (°) 18 / 14
Engine WD615.50 / WD615.34 / WD615.38 (WEICHAI, Euro II)
Horsepower 290 / 3400 / 380 HP
Gearbox 9JS135 / RTD-11509C / 12JSD160T (FAST GEAR)
Clutch Ф 430 diaphragm type
Steering  Engine ZF technology
Cab MAN F2000 lengthened flat roof cabin with A/C and sleeper
Axle Front 6.5 tons
Rear 2 * 13 ton STR hub reduction axle, final ratio: 5.73
Tire 11.00R20 / 12.00R20 / 12R22.5 / 315 / 80R22.5 (12+1)
Fuel Tank (L) 380
Shaanxi Automobile Group is a professional manufacturer and supplier of F2000 8×4 oil tank trucks in China. Our company has been engaged in producing F2000 fuel tank trucks for over 40 years. In addition to this refueling tanker truck, we also supply off-road vehicles, medium-duty trucks, large and medium-sized coaches, medium and light-duty trucks, minivan, new energy vehicles, heavy-duty axles, light axles, Cummins engines, automobile parts, etc. Shacman F2000 8×4 oil tank trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
