SHAANXI AUTOMOBILE GROUP CO., LTD

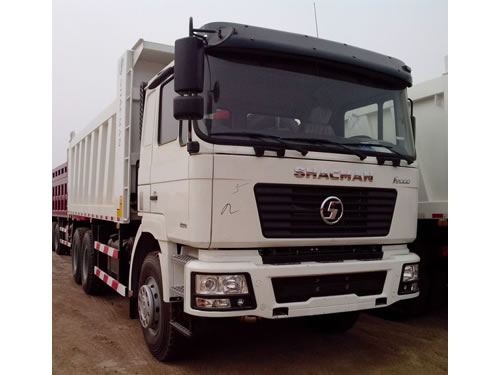

F2000 6×4 Dump Truck

F2000 6×4 Cargo Truck

Introduction
Shacman F2000 6×4 dump truck is applicable for short and medium distance transport. This self-unloading truck is usually used in construction and mining projects. Our company can supply different dump trucks to meet customers’ specific needs to transport sand, dirt and other loose bulk materials. Shanqi truck is equipped with hydraulic system to lift up the open box hinged at the rear. As a heavy duty truck, F2000 6×4 dump truck has strong truck chassis to mount heavy materials on the rear truck box. Shacman self-unloading truck adopts optimized design lifting mechanism. Its lifting is smooth and powerful.

Characteristics
  • Shanqi F2000 6×4 dump truck features compact structure, elegant appearance and wide field of vision. It is also very comfortable and spacious.
  • The door opening angle and cab tilting angle are big. It is easy for maintenance.
  • Matched with WEICHAI engine, Shacman self-unloading truck has the advantages of strong carrying capacity, strong power, high reliability, strong climbing ability and high speed.
  • Shanqi F2000 6×4 dump trucks are designed with high safety, which guarantees good protection of drivers and passengers. The body adopts integral steel frame structure welded by fully automatic robot production line. This self-unloading truck is also equipped with front under-protection device (FUPD) and transverse cab stabilization device.
Technical Parameters of F2000 6×4 Dump Truck
Max. Speed (km/h) 77
Drive System 6 × 4
Dimensions (L × W × H) (mm) Overall 8329 × 2490 × 3450
Tipper Body 5600 / 5800 × 2300 × 1500
Thickness (mm) floor: 8, side: 6, or at buyer’s option
Hydraulic Lifting System HYVA front lifting
Curb Weight (kg) 12500
Total Mass (kg) 25000
Wheel Base (mm) 3800 plus 1350
Wheel Track (mm)  (F/R)   1939 / 1800
Overhang (mm)  (F/R) 1525 / 1654
Approach / Departure Angle (°) 28 / 30
Engine WD615.50 / WD12.336 ( WEICHAI, Euro II)
Horsepower 290 / 336 HP
Gearbox RTD-11509C / 12JSD160T (FAST GEAR)
Clutch Ф 430 diaphragm type
Steering  Engine ZF technology
Cab MAN F2000 mid-lengthened flat roof cabin with A/C and sleeper
Axle Front 7.5 tons
Rear 2*13 ton hub reduction axle, final ratio: 5.73
Tire 11.00R20 / 12.00R20 / 12R22.5 / 315/80R22.5 (10+1)
Fuel Tank (L) 380

Shaanxi Automobile Group is a leading exporter of F2000 6×4 dump trucks in China. Shacman has been dedicated to manufacturing self-unloading trucks for many years. Our company also offers tractor truck, garbage truck, powder truck, crane truck, water truck, oil tank truck, concrete mixer truck, cargo truck, minivan, new energy vehicles, heavy-duty axles, light axles, Cummins engines, automobile parts, etc. Shanqi self-unloading trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
