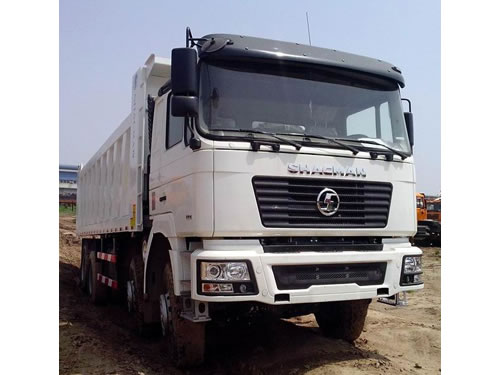

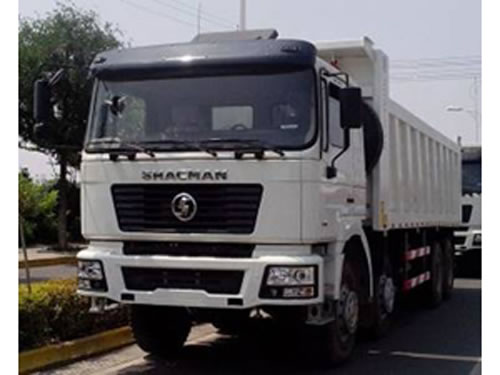

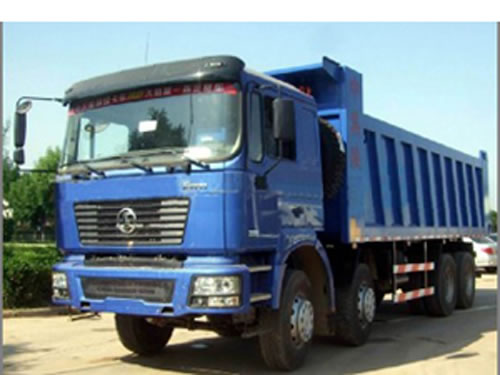

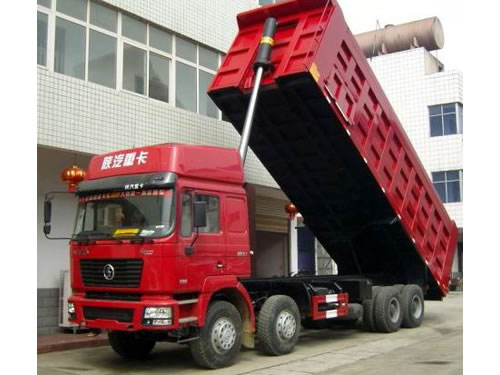

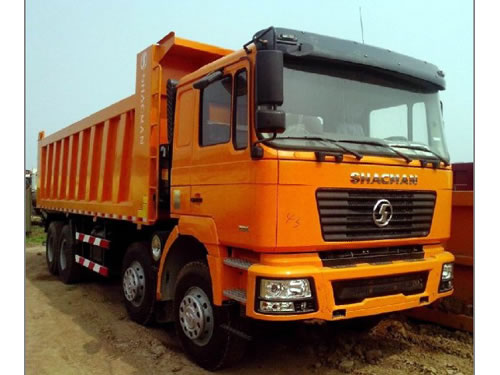

F2000 8×4 Dump Truck
Description
Shacman F2000 8×4 dump truck is extensively applied in engineering, mining, urban construction, transportation and other places. This heavy duty dump truck is typically used for the construction of municipal buildings and large industrial and mining sector delivery of various building materials including ash, sand, stone, soil and other bulk materials. Shanqi self-discharging truck can also be used to transport mine, ore and coal. F2000 8×4 dump truck is equipped with 8×4 drive system. Our company has a professional R & D team for manufacturing heavy duty dump trucks. They are well received by our customers all over the world.
- Shacman F2000 8×4 self-discharging truck features compact structure, elegant appearance and wide filed of vision. It is also very comfortable and spacious.
- This type of heavy truck is equipped with a high-quality hydraulic cylinder absorbing overseas technology.
- F2000 8×4 heavy duty dump truck is also installed with pneumatic pilot valve and pneumatic distributing valve.
- The chassis of this self-discharging truck is of high quality and good performance.
- The door opening angle and cab tilting angle are big. It is easy for maintenance.
- Matched with WEICHAI engine, Shacman heavy duty dump trucks enjoy the advantages of strong carrying capacity, strong power, high reliability, strong climbing ability and high speed.
Technical Parameters of F2000 8×4 Dump Truck
| Max. Speed (km/h) | 77 | ||
| Drive System | 8× 4 | ||
| Dimensions (L × W × H) (mm) | Overall | 10329 × 10435 × 3450 | |
| Tipper Body | 7600 / 7800 × 2300 × 1500 | ||
| Thickness (mm) | floor: 8 ; side: 6, or at buyer’s option | ||
| Hydraulic Lifting System | 180 / HYVA front lifting | ||
| Curb Weight (kg) | 14600 | ||
| Total Mass (kg) | 31000 | ||
| Wheel Base (mm) | 1800 plus 3600 plus 1350 | ||
| Wheel Track (mm) (F/R) | 1939 / 1800 | ||
| Overhang (mm) (F/R) | 1525 / 2154 | ||
| Approach / Departure Angle (°) | 28 / 20 | ||
| Engine | WD615.50 / WD12.336 ( WEICHAI, Euro II) | ||
| Horsepower | 336 / 375 HP | ||
| Gearbox | RTD-11509C / 12JSD160T (FAST GEAR) | ||
| Clutch | Ф 430 diaphragm type | ||
| Steering Engine | ZF technology | ||
| Cab | MAN F2000 mid-lengthened flat roof cabin with A/C and sleeper | ||
| Axle | Front | 2*6.5 ton | |
| Rear | 2*13 ton hub reduction axle, final ratio: 5.73 | ||
| Tire | 11.00R20 / 12.00R20 / 12R22.5 / 315 / 80R22.5 (10+1) | ||
| Fuel Tank (L) | 380 | ||
Shaanxi Automobile Group is a professional supplier of F2000 8×4 self-discharging trucks in China. Shanqi has over 40-year development and construction experience of heavy duty dump trucks. In addition to this dump truck, our products also cover off-road vehicles, medium-duty trucks, large and medium-sized coaches, medium and light-duty trucks, minivan, new energy vehicles, heavy-duty axles, light axles, Cummins engines, automobile parts, etc. Shacman F2000 8×4 self-discharging trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, and so forth.
- F2000 6×4 Dump Truck
Shacman F2000 6×4 dump truck is applicable for short and medium distance transport. This self-unloading truck is usually used in construction and mining projects. Our company can supply different dump trucks to meet customers’ specific needs to transport sand, dirt and other loose bulk materials. Shanqi truck is equipped with hydraulic system to lift up the open box hinged at the rear...
