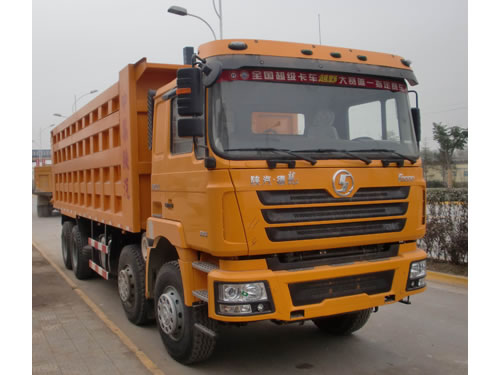

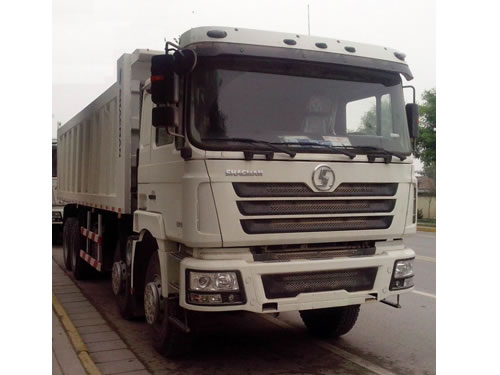

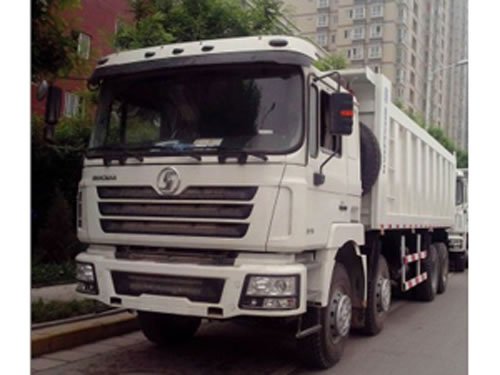

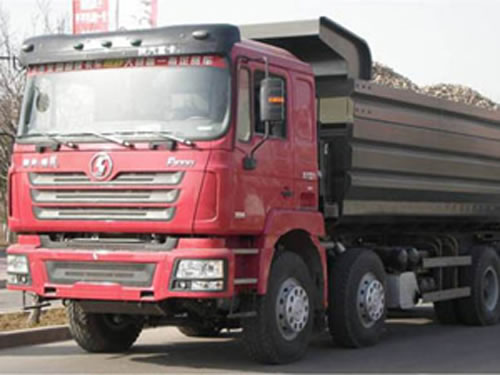

F3000 8×4 dump truck is a road vehicle that can unload goods by hydraulic or mechanical lifting. This tipper truck mainly consists of truck chassis, hydraulic lifting mechanism, cargo compartment, power take-off device and other components. In civil engineering, Shacman dump truck often works together with excavators, loaders, belt conveyors and other engineering machineries to form a complete production line for loading, transporting and unloading dirt, gravel and other bulk materials. Shanqi provides four models of F3000 8×4 dump trucks for customers, but they have the same drive type. F3000 8×4 tipper truck is made up of cab, engine, transmission, front axle, rear axle, tire and other spare parts. Due to the good performance of each component, Shacman dump trucks can meet customers’ specific transportation requirements.

Technical Parameters

Model SX3317DR346 SX3315NT406C
Max. Speed (km/h) 85 85
Drive System 8 × 4 8 × 4
Dimensions (L × W × H) (mm) Overall 10130 × 2490 × 3450 10755 × 2490 × 3450
Tipper Body 7000/7200/7400 × 2300 × 1500 7800/8000 × 2300 × 1500
Thickness (mm) floor: 8, side: 6, or at buyer’s option
Hydraulic Lifting System 180 or HYVA front lifting
Curb Weight (kg) 14600 14600
Total Mass (kg) 31000 31000
Wheel Base  (mm) 1800 plus 3400 plus 1350 1800 plus 4000 plus 1350
Wheel Track (mm)  (F/R)   1939, 2035 / 1850
Overhang (mm)  (F/R) 1525 / 2055
Approach / Departure Angle (°) 28 / 20
Engine WP10.340E32/WP10.336/ISME385 30 (WEICHAI/CUMMINS)
Horsepower 340 / 336 / 385 HP
Gearbox 10JSD140 / 12JSD160T (FAST GEAR)
Clutch Ф 430 diaphragm type
Steering  Engine ZF technology
Cab MAN F3000 mid-lengthened flat roof cabin with A/C and sleeper
Axle Front 7.5 tons
Rear 2*16 ton hub reduction axle, final ratio: 5.262
Tire 11.00R20 / 12.00R20 / 12R22.5 / 315 / 80R22.5 (10+1)
Fuel Tank (L) 300

Shaanxi Automobile Group is a professional supplier of F3000 8×4 dump trucks in China. Shanqi has many years of tipper truck production experience. Our products also cover tractor truck, garbage truck, powder truck, crane truck, water truck, oil tank truck, concrete mixer truck, cargo truck, etc. Our trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, and so on.
